4-Series C2H4-10 Sensor
DataSheet Download
Product Description

The sensor is designed for the measurement of 4C2H4 concentration in gas phase. It can be used as the pin to pin replacement of the standard 4-series electrochemical C2H4 sensors which made by the other manufacturers.

Performance Characteristics
Nominal Range 0~10ppm
Maximum Overload 20 ppm
Sensitivity(20℃) 0.4 ± 0.3 μA/ppm
Response Time (T90) ≤ 90 s
Zero Signal(20℃) < ± 0.2 μA
Baseline Shift (- 20℃ ~ 50℃) < 3 ppm
Resolution 0.5ppm
Linearity Linear up to 10 ppm
Bias Voltage +250 mV

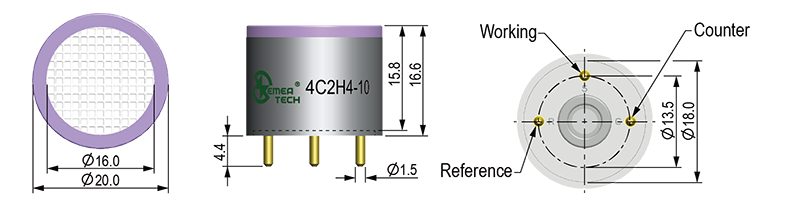

Product Dimensions

Environmental
Temperature Range -20℃ ~ 50℃
Pressure Range 1 ± 0.1atm
Humidity Range 15% ~ 90% RH non-condensing
Life time
Long Time Output Drift < 2% signal/month
Recommended Storage Temp 10℃ ~ 30℃
Expected Operating Life 2 years in clean air
Storage Life 6 months in original packaging
Warranty 12 months
Intrinsic safety Data
Max. Current at 20ppm C2H4 < 0.2mA
Max. O/C Voltage 1.3V
Max. S/C Current < 1.0A
physical characteristic
Housing Material ABS
Weight (Nominal) 5g
Orientation None
Installation

Output signals from the sensor pins are different. Inappropriate use of the pins in product design will affect the sensor functionality. Exposure to high concentrations of solvent vapors should be avoided under any condition. Mechanical overstress may cause deformation or cracks of the plastic enclosure of the sensor. If the sensor is used in extreme environmental conditions, please contact us for more details.

Cross-sensitivity Data
Gas Concentration (ppm) Output signal (ppm C2H4 equivalent)
Hydrogen Sulfide 50 <1
Sulfur Dioxide 100 <1
Nitric Oxide 10 6
Formaldehyde 10 <1
Ammonia 50 0
Carbon Monoxide 100 <1
Acetylene 10 15
Vinyl chloride 100 <1
Ethanol 500 <1

Note: The cross sensitivity are include but not limited to the above gases. It may also respond to other gases.The data in the table above may vary from different batches of sensors and the changes of test environment. Calibration using the gases that have the cross sensitivities to the sensor is not recommended.

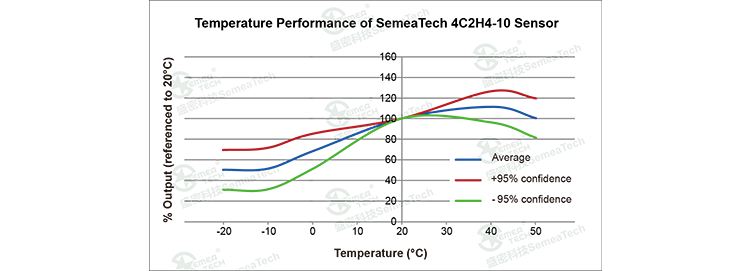

Temperature Data

Safety Note:

The sensor is designed to be used in certain instruments for life critical applications. To ensure the sensor functioning per its specifications inside the instrument, it is required to read the instrument user's guide carefully and comply with the calibration procedures by using certified target calibration gas before each use. Failure to do so may cause serious injury and fatality. Please do not open the sensor plastic enclosure because the  electrolyte and other chemicals stored inside are harmful.

It is highly recommended for customers to validate the sensor performance using this document as a reference for their product designs or applications.
