Product Introduction

HCL-30 Sensor Calibrator

Product Description

This hydrogen fluoride (HCL) sensor calibrator is designed for the calibra- tion and bump test of HCL gas detectors or sensors. It can be used in the laboratory and is also convenient to use in the field. This device consists of a HCL gas carrier, an equilibrium gas chamber, an on/off valve, and an LCD display. It is reliable and easy to operate..

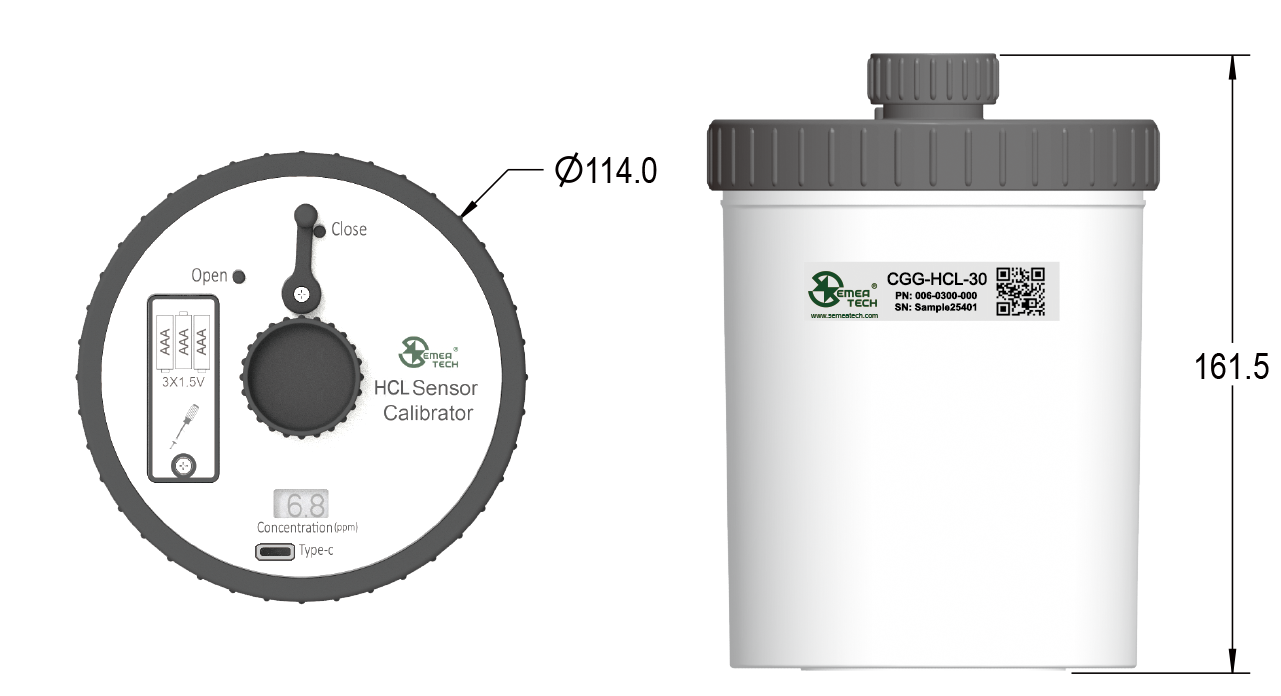

Product Dimensions

Performance Characteristics

Concentration range(HCL)	1 ~ 30 ppm
Accuracy：	+/-15%

Environmental

Temperature Range:	15°C ~ 30°C
Pressure Range:	1 ± 0.1 atm
Humidity Range:	15% ~ 90%RH non-condensing

Life Time

Recommended Storage Temp:	10°C ~ 30°C
Expected Operating Life:	6 months or 200 times(Whichever occurs first)

Physical Characteristics

Housing Material:	Container PP, Cap PA66
Weight (Nominal):	300 g
