Product List

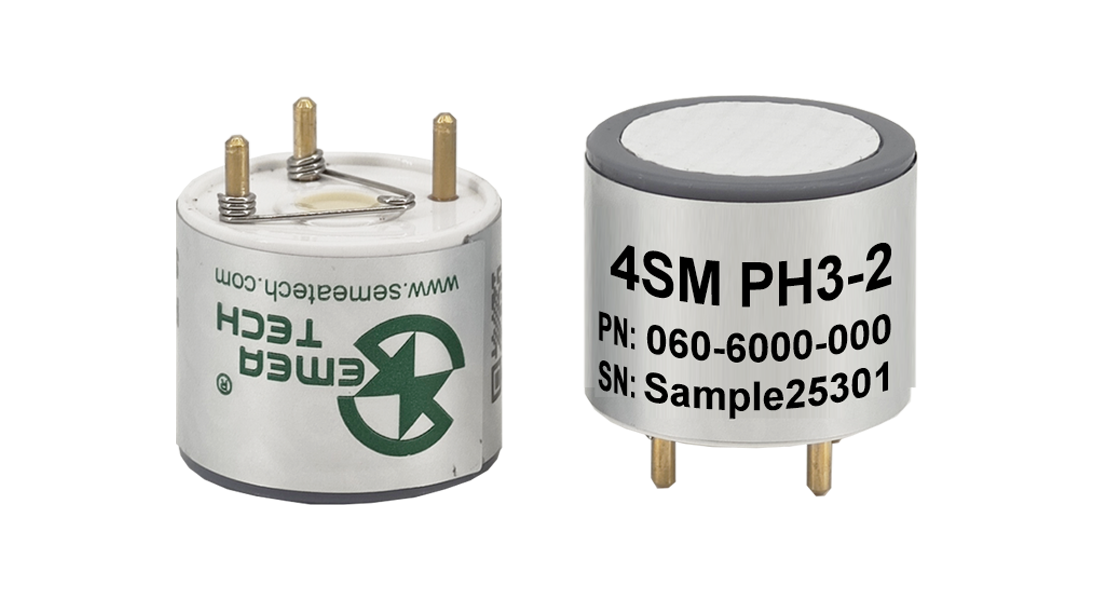

4SM-Series PH3-2 Sensor

Nominal Range: 0 ~ 2 ppm
Maximum Overload: 2 ppm
Sensitivity: 0.6 ± 0.2 μA/ppm
Response Time (T90): ≤ 75 s
Zero Signal (20°C): < ±0.2 μA
Resolution: < 0.015 ppm
Linearity: Linear up to 2 ppm
Bias Voltage: 0 mV

4SM-Series SiH4-20 Sensor

Nominal Range: 0 ~ 20 ppm
Maximum Overload: 50 ppm
Sensitivity: 0.18 ± 0.07 μA/ppm
Response Time (T90): ≤ 70 s
Zero Signal (20°C): < ±0.2 μA
Resolution: < 0.02 ppm
Linearity: Linear up to 20 ppm
Bias Voltage: 0 mV

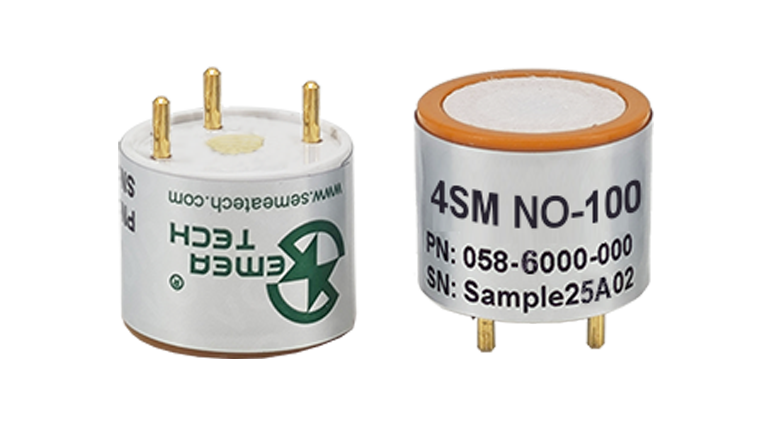

4SM-Series NO-100 Sensor

Nominal Range: 0 ~ 100 ppm
Maximum Overload: 200 ppm
Sensitivity: 0.4 ± 0.1 μA/ppm
Response Time (T90): ≤ 30 s
Zero Signal (20°C): < ±1.4 μA
Resolution: 0.1 ppm
Linearity: Linear up to 100 ppm
Bias Voltage: +300 mV

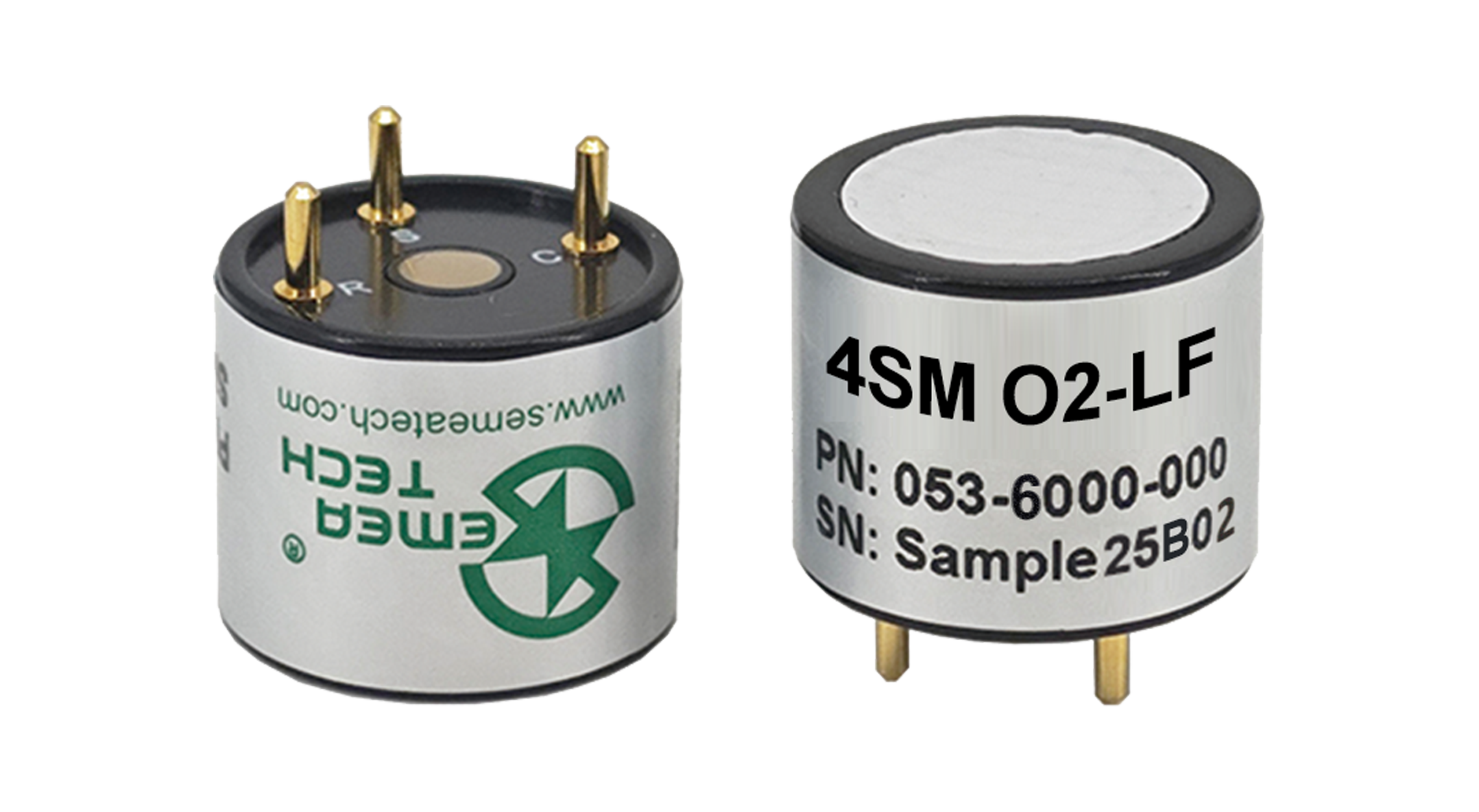

4SM-Series O2-LF Sensor

Nominal Range: 0 ~ 25% vol oxygen
Maximum Overload: 30% vol oxygen
Sensitivity (20°C): -100 ± 20 μA in air
Response Time (T90): ≤ 15 s
Zero Signal (20°C): ±0.5% vol oxygen
Resolution: 0.1% vol oxygen
Linearity: S=K loge(1/1-C)
Bias Voltage: -600 mV

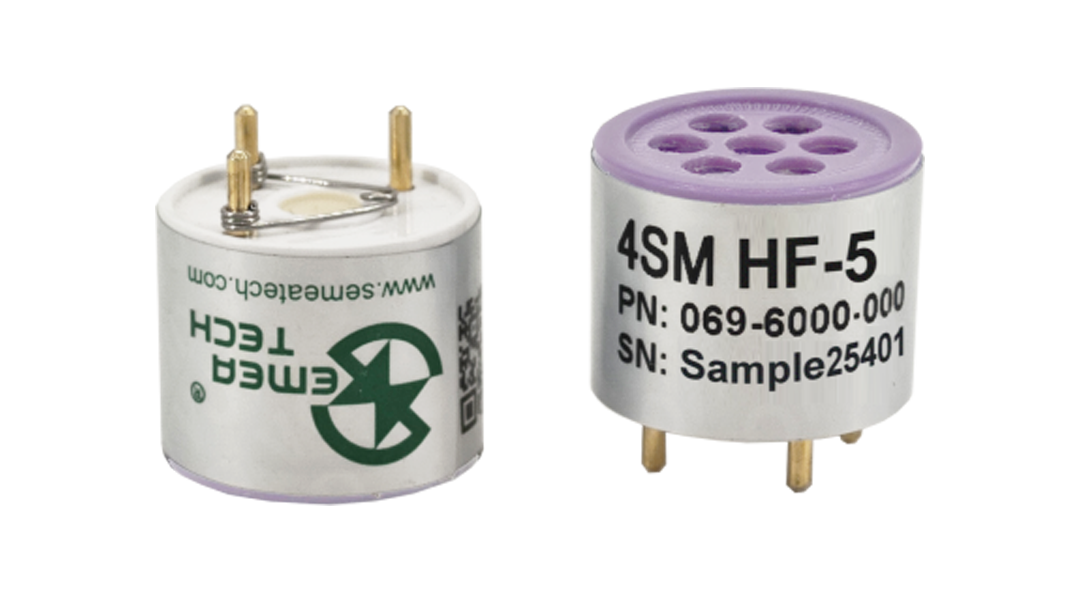

4SM-Series HF-5 Sensor

Nominal Range: 0 ~ 5 ppm
Maximum Overload: 10 ppm
Sensitivity: -0.5 ± 0.2 μA/ppm
Response Time (T90): ≤ 140 s
Zero Signal (20°C): < ±0.2 μA
Resolution: 0.015 ppm
Linearity: Linear up to 5 ppm
Bias Voltage: 0 mV

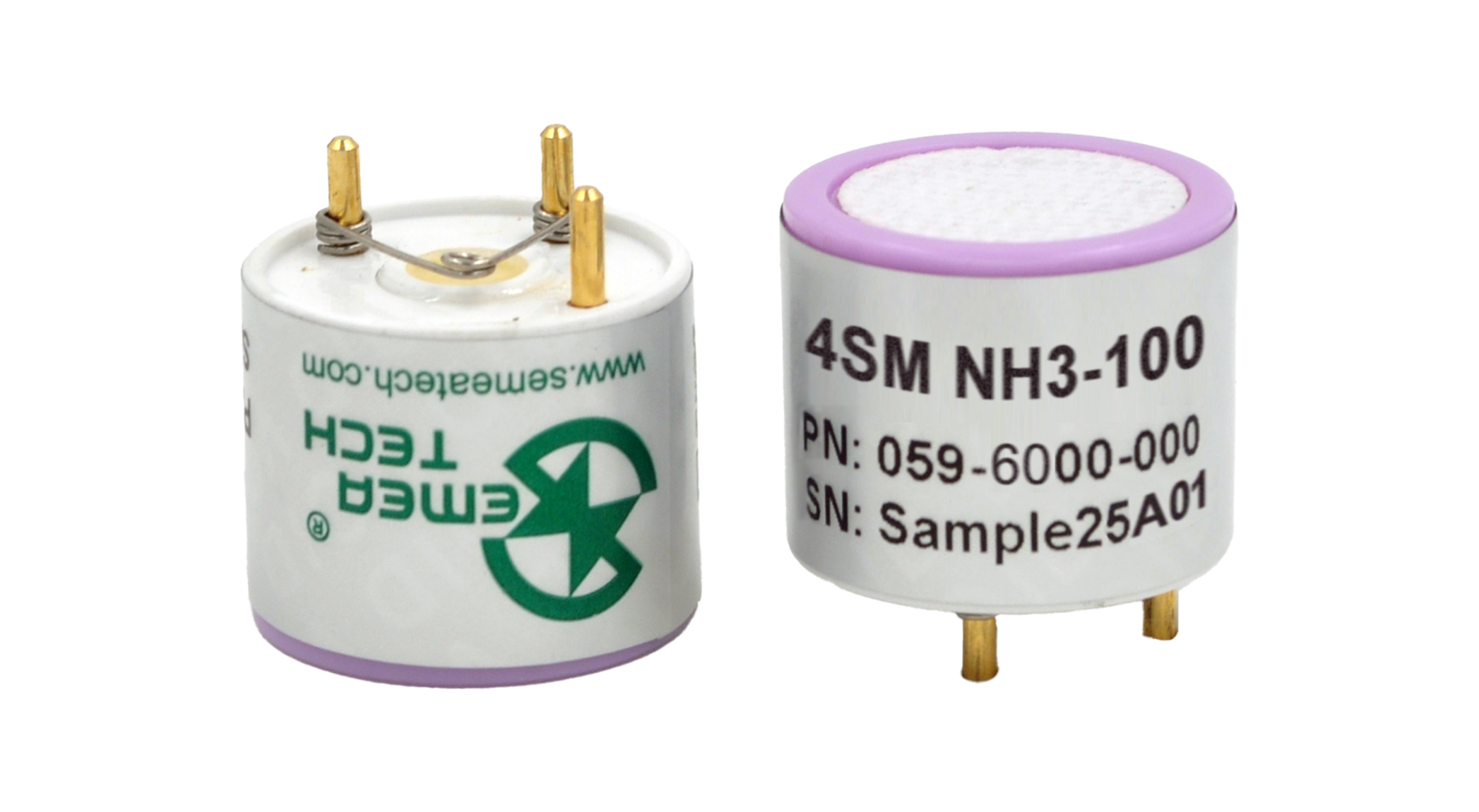

4SM-Series NH3-100 Sensor

Nominal Range: 0 ~ 100 ppm
Maximum Overload: 200 ppm
Sensitivity: 0.035 ± 0.015 μA/ppm
Response Time (T90): ≤ 75 s
Zero Signal (20°C): < ±0.4 μA
Resolution: 0.1 ppm
Linearity: Linear up to 100 ppm
Bias Voltage: 0 mV

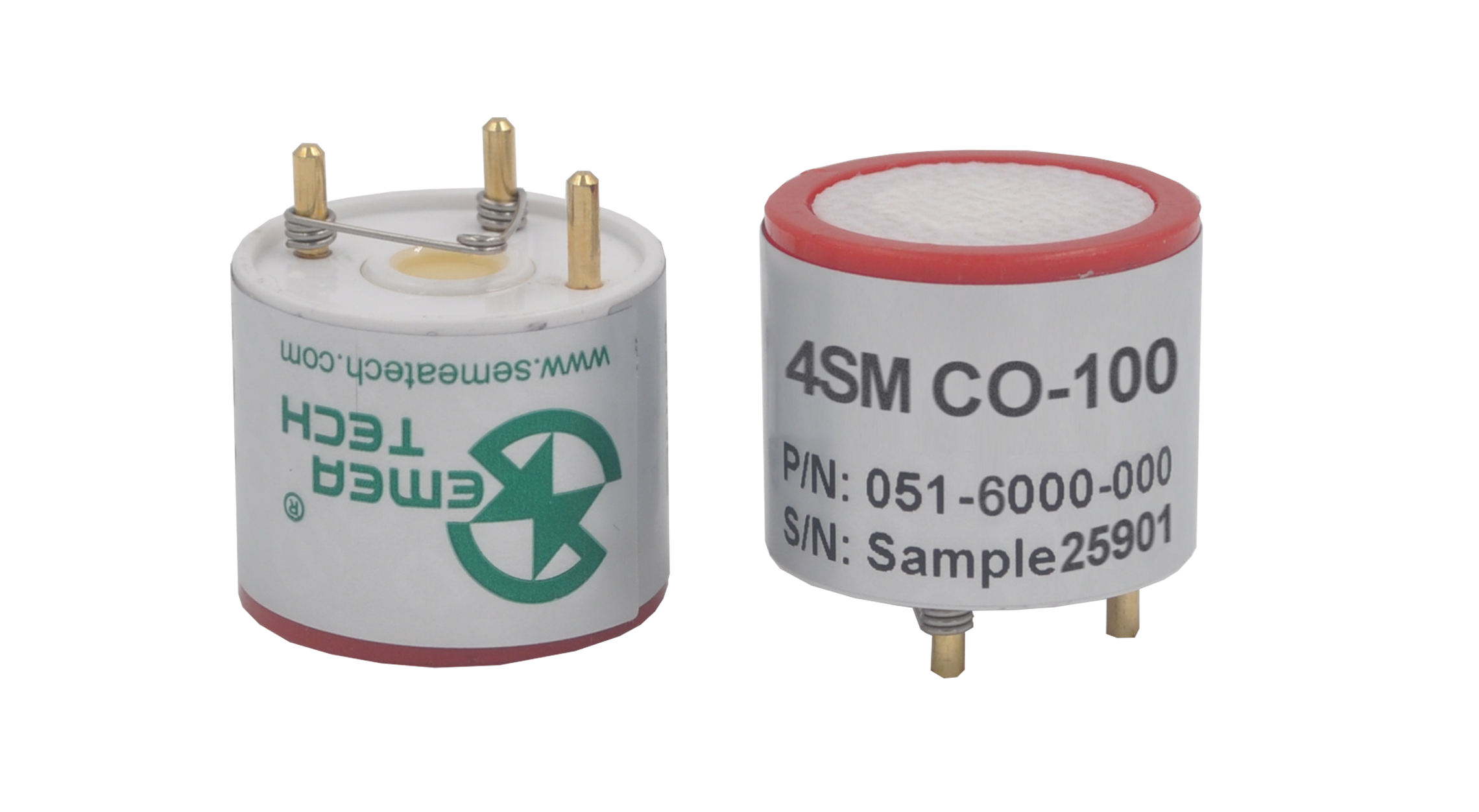

4SM-Series CO-100 Sensor

Nominal Range: 0 ~ 100 ppm
Maximum Overload: 200 ppm
Sensitivity: 0.075 ± 0.020 μA/ppm
Response Time (T90): ≤ 15 s
Zero Signal (20°C): < ±0.2 μA
Resolution: 0.1 ppm
Linearity: Linear up to 100 ppm
Bias Voltage: 0 mV

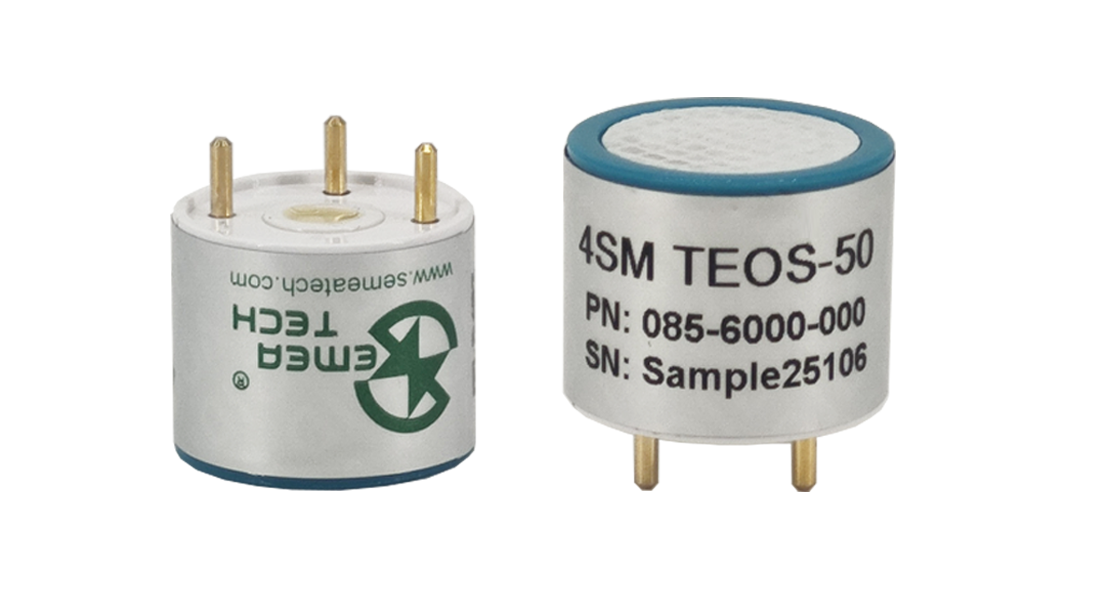

4SM-Series TEOS-50 Sensor

Nominal Range: 0 ~ 50 ppm
Maximum Overload: 100 ppm
Sensitivity: 0.85 ±0.40 μA/ppm
Response Time (T90): ≤ 120 s
Zero Signal: -0.2 ~ 2.5 μA
Resolution: 0.1 ppm
Linearity: Linear up to 50 ppm
Bias Voltage: +300 mV

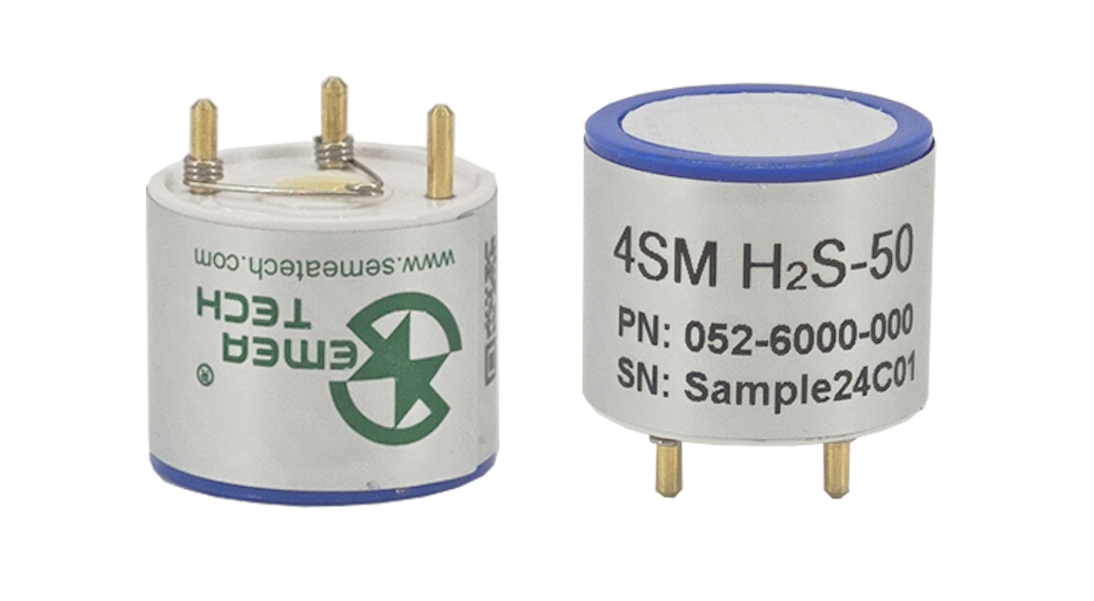

4SM-Series H2S-50 Sensor

Nominal Range: 0 ~ 50 ppm
Maximum Overload: 100 ppm
Sensitivity: 1.25 ± 0.25 μA/ppm
Response Time (T90): ≤ 25 s
Zero Signal: < ±0.2 μA
Resolution: 0.01 ppm
Linearity: Linear up to 50 ppm
Bias Voltage: 0 mV

4SM-Series HCL-10 Sensor

Nominal Range: 0 ~ 10 ppm
Maximum Overload: 20 ppm
Sensitivity: -0.55 ± 0.15 μA/ppm
Response Time (T90): ≤ 140 s
Zero Signal: < ±0.2 μA
Resolution: 0.01 ppm
Linearity: Linear up to 10 ppm
Bias Voltage: 0 mV

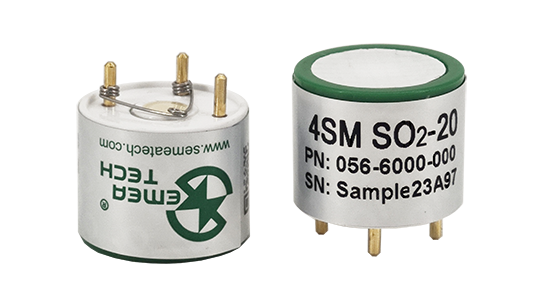

4SM-Series SO2-20 Sensor

Nominal Range: 0 ~ 20 ppm
Maximum Overload: 40 ppm
Sensitivity: 0.4 ± 0.1 μA/ppm
Response Time (T90): ≤ 60 s
Zero Signal: < ±0.2 μA
Resolution: 0.01 ppm
Linearity: Linear up to 20 ppm
Bias Voltage: 0 mV

4SM-Series CL2-5 Sensor

Nominal Range: 0 ~ 5 ppm
Maximum Overload: 10 ppm
Sensitivity: -0.75 ± 0.20 μA/ppm
Response Time (T90): ≤ 45 s
Zero Signal: < ±0.2 μA
Resolution: 0.008 ppm
Linearity: Linear up to 5 ppm
Bias Voltage: 0 mV
