Your position : Home > Products > Electrochemical Sensors > mini-Series Gas Sensors >

Product List

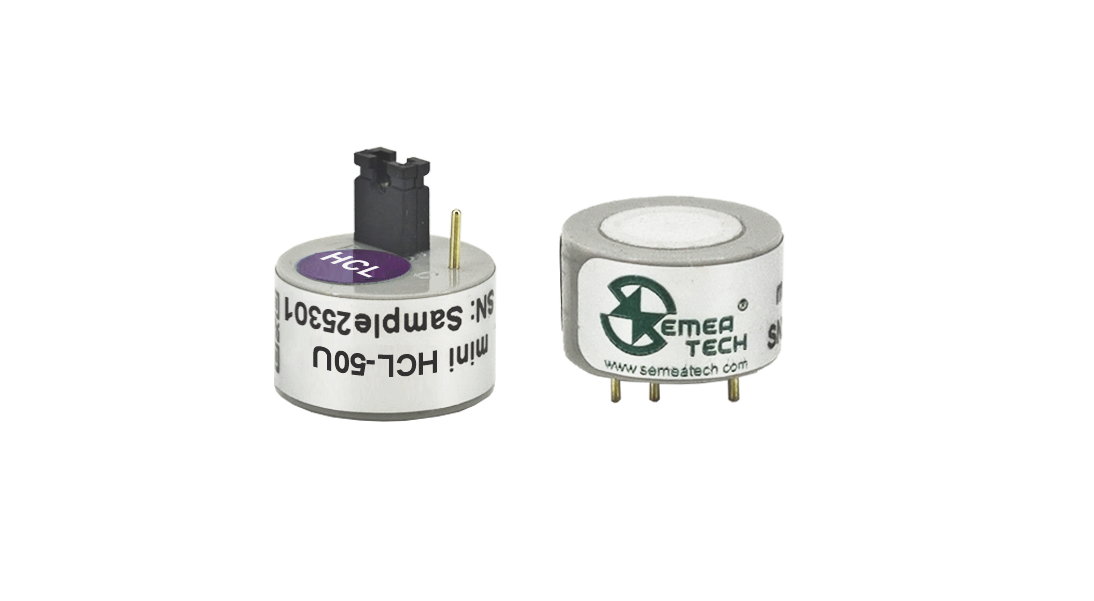

mini-Series HCl-50U Sensor

Nominal Range: 0 ~ 50 ppm
Maximum Overload: 50 ppm
Sensitivity: 0.2 ± 0.1 μA/ppm
Response Time (T90): ≤ 75 s
Zero Signall (20°C): < ±0.2 μA
Resolution: < 0.05 ppm
Linearity: Linear up to 50 ppm
Bias Voltage: 0 mV

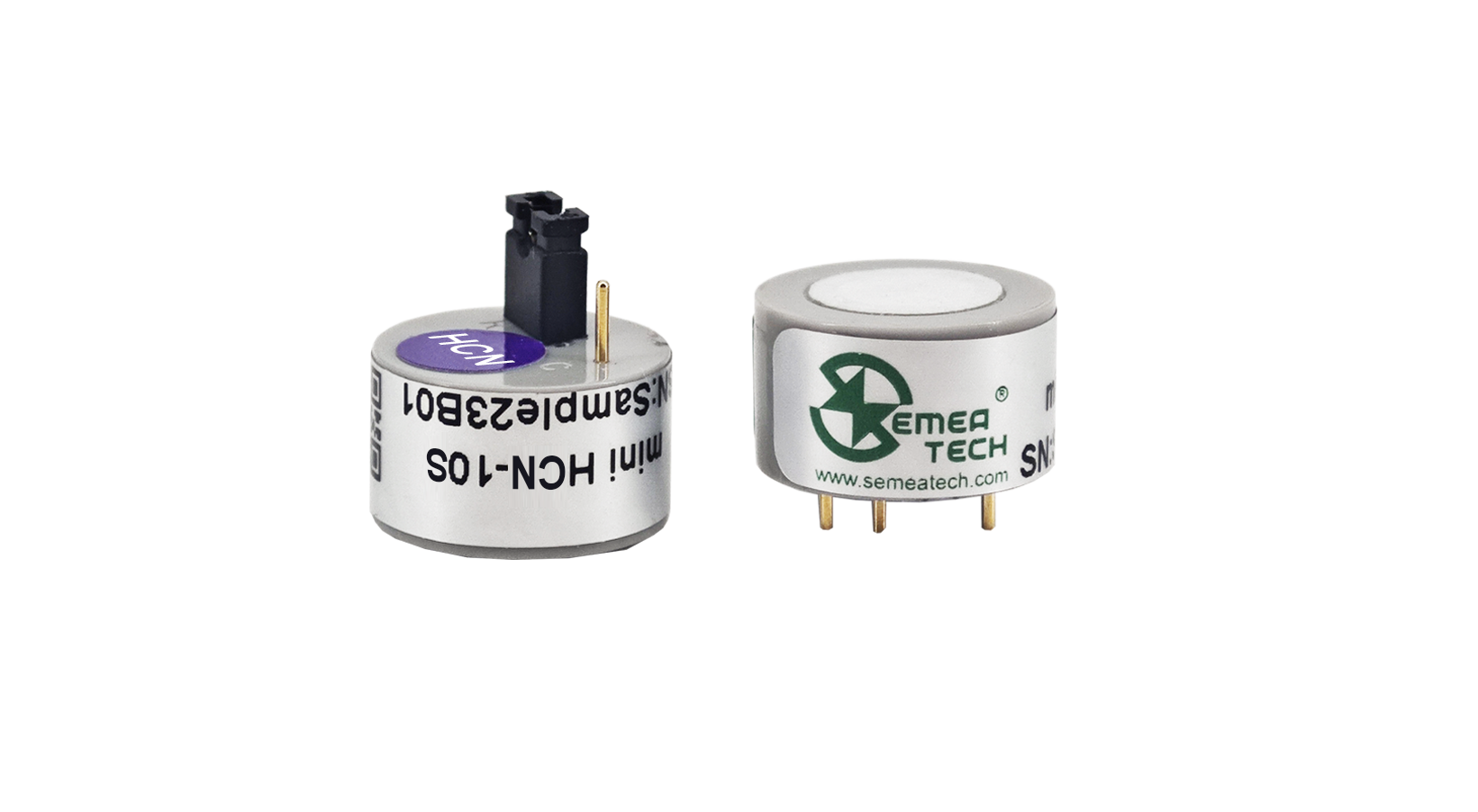

mini-Series HCN-10S Sensor

Nominal Range: 0 ~ 10 ppm
Maximum Overload: 10 ppm
Sensitivity: 0.06 ± 0.02 μA/ppm
Response Time (T90): ≤ 90 s
Zero Signall (20°C): < ±0.2 μA
Resolution: 0.03 ppm
Linearity: Linear up to 10 ppm
Bias Voltage: 0 mV

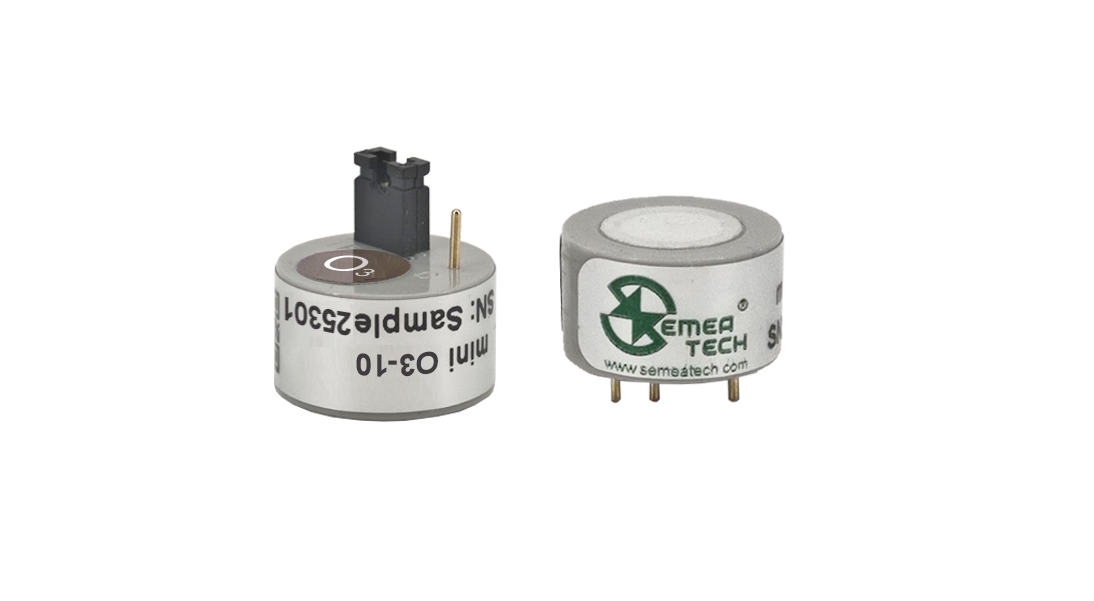

mini-Series O3-10 Sensor

Nominal Range: 0 ~ 10 ppm
Maximum Overload: 50 ppm
Sensitivity: -0.26 ± 0.06 μA/ppm
Response Time (T90): ≤ 60 s
Zero Signall (20°C): < ±0.2 μA
Resolution: 0.02 ppm
Linearity: Linear up to 10 ppm
Bias Voltage: 0 mV

mini-Series SO2-20B Sensor

Nominal Range: 0 ~ 20 ppm
Maximum Overload: 40 ppm
Sensitivity: 0.25 ± 0.10 μA/ppm
Response Time (T90): ≤ 60 s
Zero Signall (20°C): < ±0.2 μA
Resolution: < 0.03 ppm
Linearity: Linear up to 20 ppm
Bias Voltage: 0 mV

mini-Series PH3-20A Sensor

Nominal Range: 0 ~ 20 ppm
Maximum Overload: 50 ppm
Sensitivity: 0.45 ± 0.15 μA/ppm
Response Time (T90): ≤ 45 s
Zero Signall (20°C): < ±0.2 μA
Resolution: 0.05 ppm
Linearity: Linear up to 20 ppm
Bias Voltage: 0 mV

mini-Series CH3SH-10 Sensor

Nominal Range: 0 ~ 10 ppm
Maximum Overload: 20 ppm
Sensitivity: 0.35 ± 0.15 μA/ppm
Response Time (T90): ≤ 60 s
Zero Signall (20°C): < ±0.2 μA
Resolution: 0.015 ppm
Linearity: Linear up to 10 ppm
Bias Voltage: 0 mV

mini-Series ETO-100 Sensor

Nominal Range: 0 ~ 100 ppm
Maximum Overload: 500 ppm
Sensitivity: 0.13 ± 0.06 μA/ppm
Response Time (T90): ≤ 120 s
Zero Signall (20°C): 0.0 ~ 1.5 μA
Resolution: < 0.5 ppm
Linearity: Linear up to 100 ppm
Bias Voltage: +300 mV

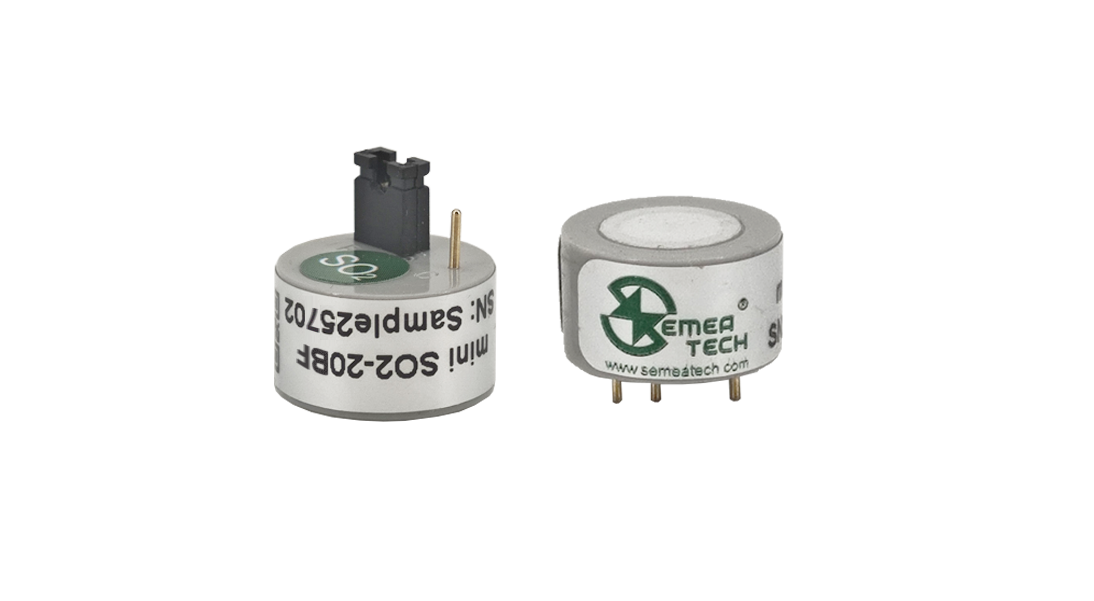

mini-Series SO2-20BF Sensor

Nominal Range: 0 ~ 20 ppm
Maximum Overload: 40 ppm
Sensitivity: 0.2 ± 0.1 μA/ppm
Response Time (T90): ≤ 75 s
Zero Signall (20°C): < ±0.2 μA
Resolution: 0.02 ppm
Linearity: Linear up to 20 ppm
Bias Voltage: 0 mV

mini-Series NO-50U Sensor

Nominal Range: 0 ~ 50 ppm
Maximum Overload: 50 ppm
Sensitivity: 0.18 ± 0.05 μA/ppm
Response Time (T90): ≤ 30 s
Zero Signall (20°C): < ±0.2 μA
Resolution: < 0.02 ppm
Linearity: Linear up to 50 ppm
Bias Voltage: 0 mV

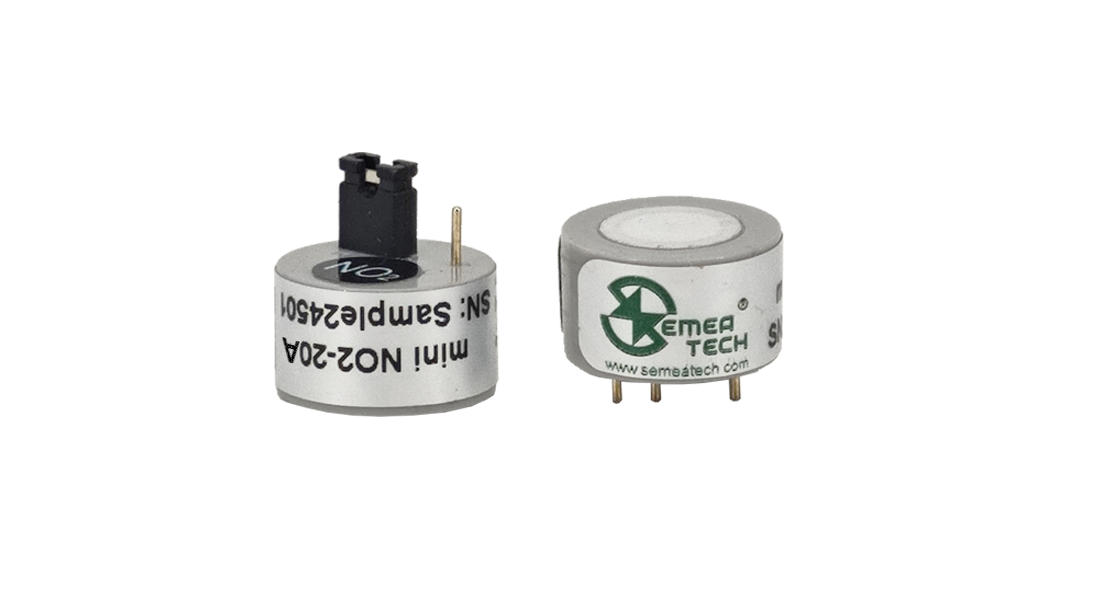

mini-Series NO2-20A Sensor

Nominal Range: 0 ~ 20 ppm
Maximum Overload: 50 ppm
Sensitivity: -0.23 ± 0.12 μA/ppm
Response Time (T90): ≤ 35 s
Zero Signall (20°C): < ±0.2 μA
Resolution: < 0.03 ppm
Linearity: Linear up to 20 ppm
Bias Voltage: 0 mV

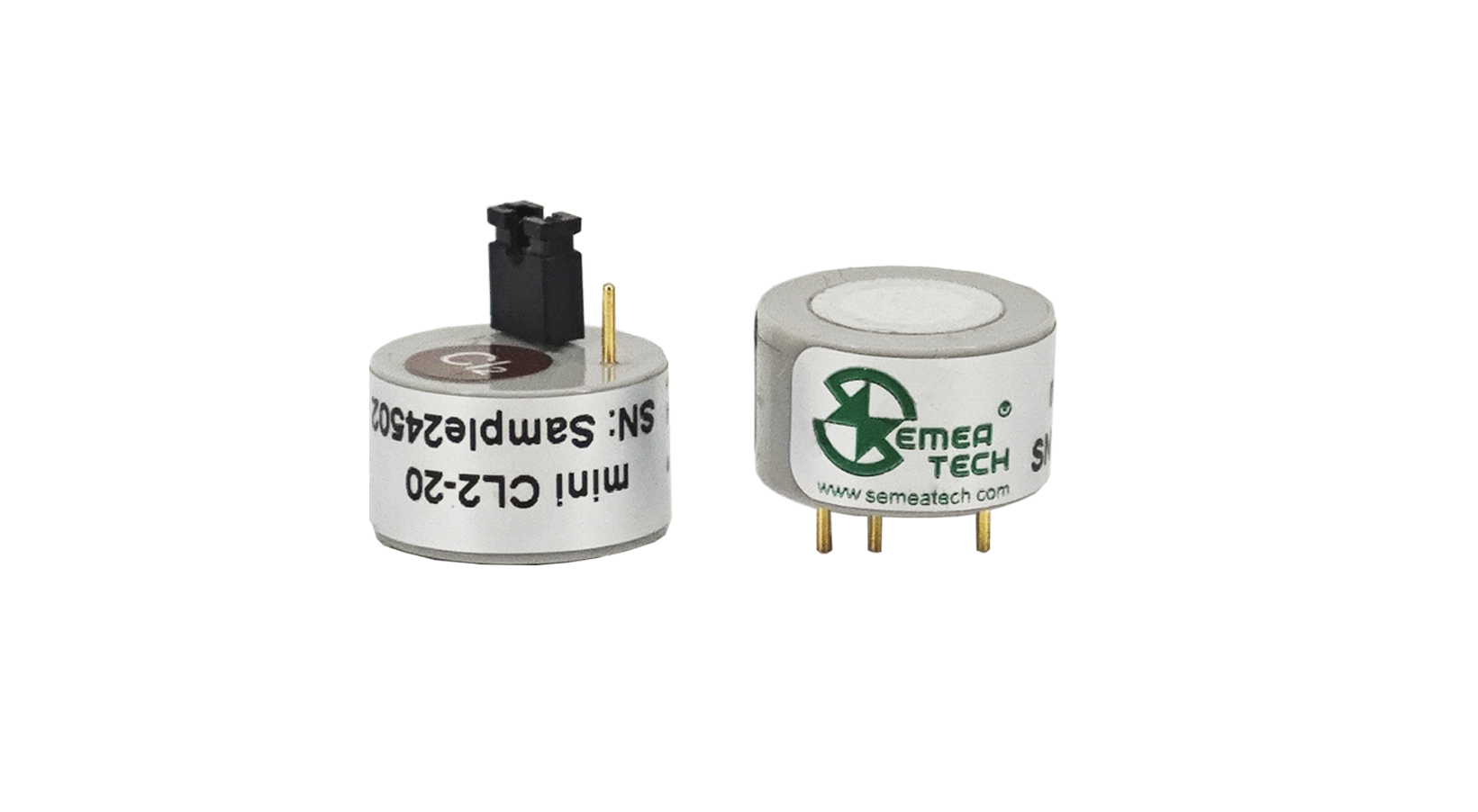

mini-Series CL2-20 Sensor

Nominal Range: 0 ~ 20 ppm
Maximum Overload: 50 ppm
Sensitivity: -0.25 ± 0.10 μA/ppm
Response Time (T90): ≤ 35 s
Zero Signall (20°C): < ±0.2 μA
Resolution: < 0.05 ppm
Linearity: Linear up to 20 ppm
Bias Voltage: 0 mV

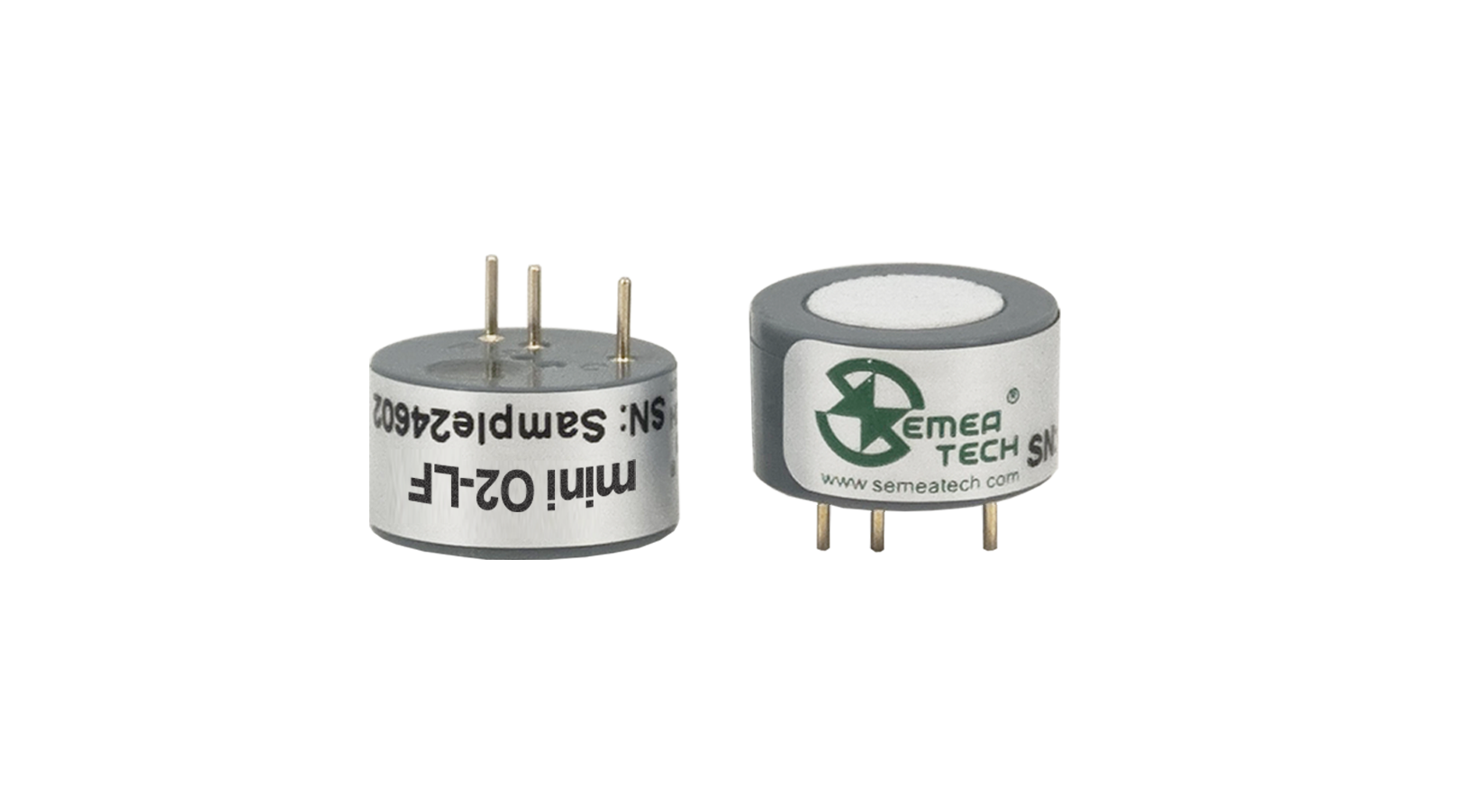

mini-Series O2-LF Sensor

Nominal Range: 0 ~ 25% vol oxygen
Maximum Overload: 30% vol oxygen
Output Signal (20℃):-100 ± 20 μA in air
Response Time (T90): ≤ 15 s
Zero Signal: ±0.6% vol oxygen
Resolution: 0.1% vol oxygen
Bias Voltage: -600 mV
Repeatability: < ±5%

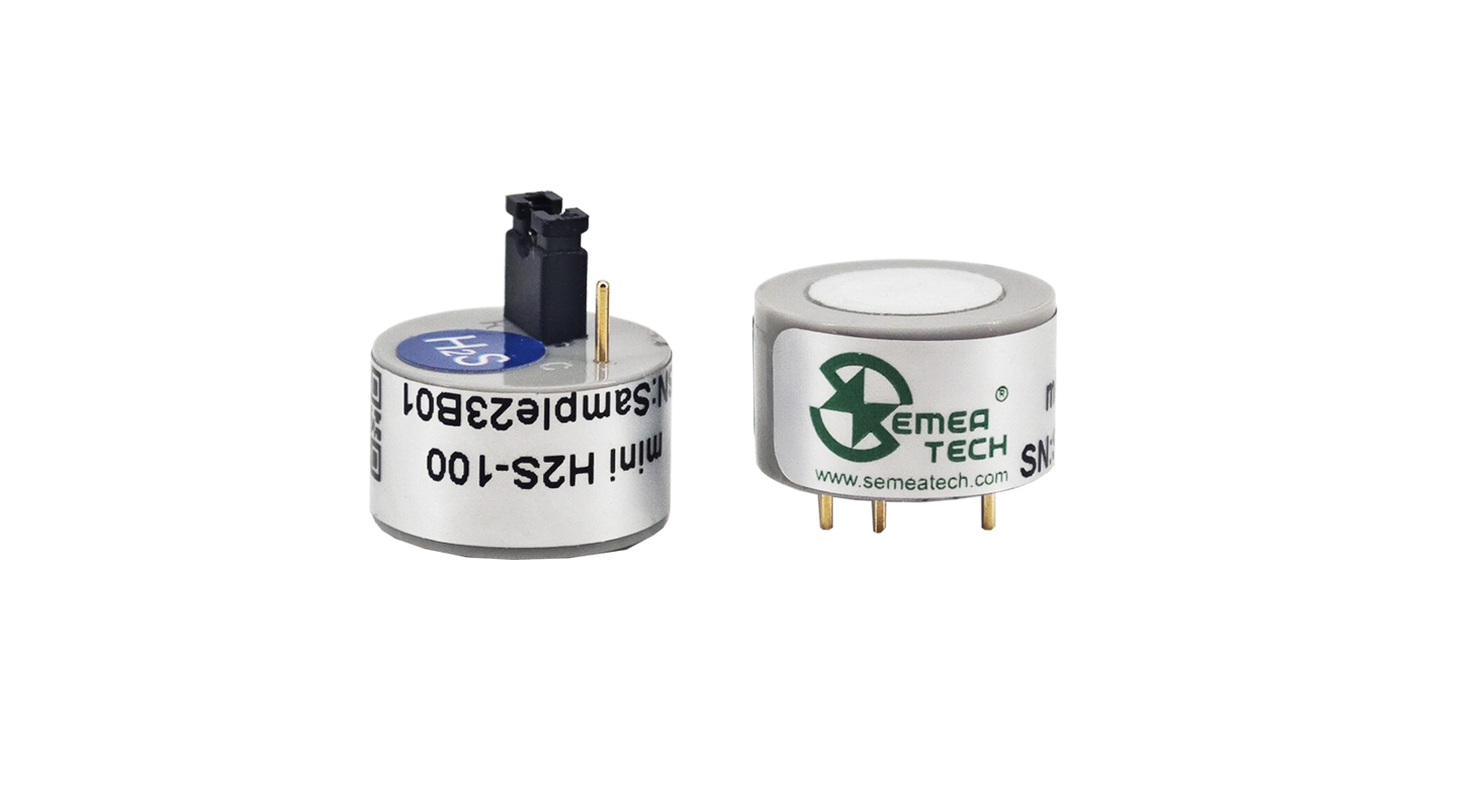

mini-Series H2S-100S Sensor

Nominal Range: 0 ~ 100 ppm
Maximum Overload: 100 ppm
Sensitivity: 0.14 ± 0.03 μA/ppm
Response Time (T90): ≤ 25 s
Zero Signall (20°C): < ±0.2 μA
Resolution: < 0.05 ppm
Linearity: Linear up to 100 ppm
Bias Voltage: 0 mV

mini-Series NH3-100L Sensor

Nominal Range: 0 ~ 100 ppm
Maximum Overload: 200 ppm
Sensitivity: 0.05 ± 0.02 μA/ppm
Response Time (T90): ≤ 60 s
Zero Signal: < ±0.2 μA
Resolution: 0.08 ppm
Linearity: Linear up to 100 ppm
Bias Voltage: 0 mV

mini-Series CO-1000S Sensor

Nominal Range: 0 ~ 1000 ppm
Maximum Overload: 1500 ppm
Sensitivity: 0.045 ± 0.015 μA/ppm
Response Time (T90): ≤ 20 s
Zero Signal: < ±0.2 μA
Resolution: < 0.18 ppm
Linearity: Linear up to 1000 ppm
Bias Voltage: 0 mV

mini-Series LEL-2.5V Sensor

Nominal Range: 0 ~ 100% LEL
Maximum Overload: 100% LEL
Sensitivity (20°C): 43 ± 8 mV/%CH4
Response Time (T90): < 10 s
Zero Signal (20°C): < ±0.3 μA
Working Current: < 125 mA
Linearity: 0 ~ 80% LEL
Working Voltage: 2.5 ± 0.1 VDC
Resolution: < 1% LEL

共 1页16条记录
