Mini Gamma Sensor
Datasheet download
Product Description

This mini-Gamma sensor uses a 4x4x8mm Cesium Iodine (Csl) scintillator that uses a radiation-sensitive crystal as the detection component. It works with a PIN diode to convert the radiation to electric outputs. Along with a high sensitive preamplifier, the Csl crystal and PIN diode are encapsulated into a 18.2x12.2x6.4mm metal enclosure. This compact mechanical design enables the sensor to be used in small digital devices such as smart phones, smart watches and other wearable devices used for those who are sensitive to radiation.

This mini-Gamma sensor can be used to detect X-ray and Gamma ray with the energy from 30keV to 3MeV. The output of the sensor is half-gauss shaped pulse signal. The amplitude of output pulse is relevant to the energy of incident radiation particle. Below 1.2MeV of incident particle energy, the amplitude of output pulse is proportional to the energy of radiation particle. In addition the counting rate of output pulse is proportional to the radiation intensity of the measuring field as well. A voltage with a range from 2.0V to 5.5V can be used to power this mini-Gamma sensor. However, the applied voltage should come from stable DC power that has either minimal or no ripple because the DC power ripple couples with input terminal of the high sensitive preamplifier to form fault signals.

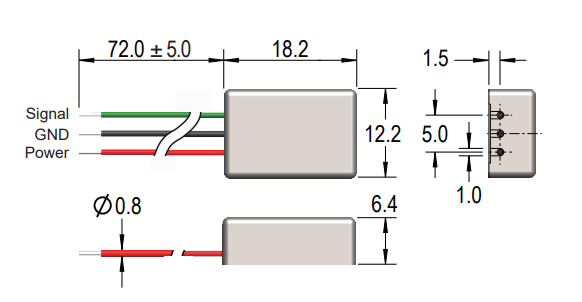

Product Dimensions
Measurable Range of X/γ Energy 30 keV ~ 3 MeV
Sensitivity (1μSv/h) > 4,000 pulse counts/h
Energy Linearity 1 mV/keV (E < 1.2 MeV)
Upper Limit of Measurable Dose Rate 0.5 mSv/h
Operating Voltage DC 2.0 V ~ 5.5 V
Static Current < 200 μA @ 3.3 V
Working Temperature -20℃ ~ 50℃
Dimension 18.2 x 12.2 x 6.4 mm
Weight 1.5 g
Static Offset Level of Output 850 mV ± 150 mV
Wires 1-Red: Power V+; 2-Black: V- or Ground; 3-Green: Signal output;
Solid wire diameter: 0.45 mm; Sleeve wire diameter: 0.80 mm
